Ridley Engineering

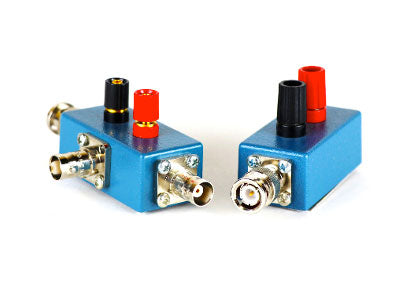

Ridley Impedance Test Kit

Ridley Impedance Test Kit

Regular price $650.00 USD
Regular price Sale price $650.00 USD
Sale Sold out
Shipping calculated at checkout.

The Ridley Impedance Test Kit is designed to measure power converter components, including capacitors of all types, inductors, and transformers. When used with the AP Frequency Response Analyzer, it can provide measurements of winding capacitance as low as 1 pF, and inductances as low as 3 nH. It can also provide sophisticated information such as the frequency dependence of transformer leakage inductance, and proximity loss values of winding resistances.

The Ridley Impedance Test Kit requires an AP310 Frequency Response Analyzer and Ridley Universal Injector.
